gear::TiXmlNode Class Reference

The parent class for everything in the Document Object Model. More...

#include <tinyxml.h>

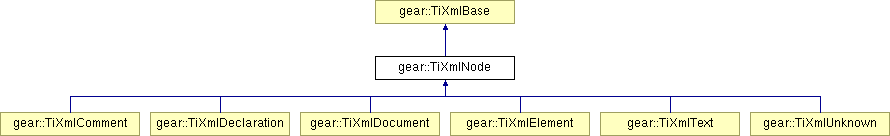

Inheritance diagram for gear::TiXmlNode:

List of all members.

Public Types
enum	NodeType {   DOCUMENT, ELEMENT, COMMENT, UNKNOWN,   TEXT, DECLARATION, TYPECOUNT }
	The types of XML nodes supported by TinyXml. More...
Public Member Functions
const char *	Value () const
	The meaning of 'value' changes for the specific type of TiXmlNode.
void	SetValue (const char *_value)
	Changes the value of the node.
void	SetValue (const std::string &_value)
	STL std::string form.
void	Clear ()
	Delete all the children of this node. Does not affect 'this'.
TiXmlNode *	Parent ()
	One step up the DOM.
const TiXmlNode *	Parent () const
const TiXmlNode *	FirstChild () const
	The first child of this node. Will be null if there are no children.
TiXmlNode *	FirstChild ()
const TiXmlNode *	FirstChild (const char *value) const
	The first child of this node with the matching 'value'. Will be null if none found.
TiXmlNode *	FirstChild (const char *value)
	The first child of this node with the matching 'value'. Will be null if none found.
const TiXmlNode *	LastChild () const
TiXmlNode *	LastChild ()
	The last child of this node. Will be null if there are no children.
const TiXmlNode *	LastChild (const char *value) const
TiXmlNode *	LastChild (const char *value)
	The last child of this node matching 'value'. Will be null if there are no children.
const TiXmlNode *	FirstChild (const std::string &_value) const
	STL std::string form.
TiXmlNode *	FirstChild (const std::string &_value)
	STL std::string form.
const TiXmlNode *	LastChild (const std::string &_value) const
	STL std::string form.
TiXmlNode *	LastChild (const std::string &_value)
	STL std::string form.
const TiXmlNode *	IterateChildren (const TiXmlNode *previous) const
	An alternate way to walk the children of a node.
TiXmlNode *	IterateChildren (TiXmlNode *previous)
const TiXmlNode *	IterateChildren (const char *value, const TiXmlNode *previous) const
	This flavor of IterateChildren searches for children with a particular 'value'.
TiXmlNode *	IterateChildren (const char *value, TiXmlNode *previous)
const TiXmlNode *	IterateChildren (const std::string &_value, const TiXmlNode *previous) const
	STL std::string form.
TiXmlNode *	IterateChildren (const std::string &_value, TiXmlNode *previous)
	STL std::string form.
TiXmlNode *	InsertEndChild (const TiXmlNode &addThis)
	Add a new node related to this.
TiXmlNode *	LinkEndChild (TiXmlNode *addThis)
	Add a new node related to this.
TiXmlNode *	InsertBeforeChild (TiXmlNode *beforeThis, const TiXmlNode &addThis)
	Add a new node related to this.
TiXmlNode *	InsertAfterChild (TiXmlNode *afterThis, const TiXmlNode &addThis)
	Add a new node related to this.
TiXmlNode *	ReplaceChild (TiXmlNode *replaceThis, const TiXmlNode &withThis)
	Replace a child of this node.
bool	RemoveChild (TiXmlNode *removeThis)
	Delete a child of this node.
const TiXmlNode *	PreviousSibling () const
	Navigate to a sibling node.
TiXmlNode *	PreviousSibling ()
const TiXmlNode *	PreviousSibling (const char *) const
	Navigate to a sibling node.
TiXmlNode *	PreviousSibling (const char *)
const TiXmlNode *	PreviousSibling (const std::string &_value) const
	STL std::string form.
TiXmlNode *	PreviousSibling (const std::string &_value)
	STL std::string form.
const TiXmlNode *	NextSibling (const std::string &_value) const
	STL std::string form.
TiXmlNode *	NextSibling (const std::string &_value)
	STL std::string form.
const TiXmlNode *	NextSibling () const
	Navigate to a sibling node.
TiXmlNode *	NextSibling ()
const TiXmlNode *	NextSibling (const char *) const
	Navigate to a sibling node with the given 'value'.
TiXmlNode *	NextSibling (const char *)
const TiXmlElement *	NextSiblingElement () const
	Convenience function to get through elements.
TiXmlElement *	NextSiblingElement ()
const TiXmlElement *	NextSiblingElement (const char *) const
	Convenience function to get through elements.
TiXmlElement *	NextSiblingElement (const char *)
const TiXmlElement *	NextSiblingElement (const std::string &_value) const
	STL std::string form.
TiXmlElement *	NextSiblingElement (const std::string &_value)
	STL std::string form.
const TiXmlElement *	FirstChildElement () const
	Convenience function to get through elements.
TiXmlElement *	FirstChildElement ()
const TiXmlElement *	FirstChildElement (const char *value) const
	Convenience function to get through elements.
TiXmlElement *	FirstChildElement (const char *value)
const TiXmlElement *	FirstChildElement (const std::string &_value) const
	STL std::string form.
TiXmlElement *	FirstChildElement (const std::string &_value)
	STL std::string form.
virtual int	Type () const
	Query the type (as an enumerated value, above) of this node.
const TiXmlDocument *	GetDocument () const
	Return a pointer to the Document this node lives in.
TiXmlDocument *	GetDocument ()
bool	NoChildren () const
	Returns true if this node has no children.
const TiXmlDocument *	ToDocument () const
	Cast to a more defined type. Will return null not of the requested type.
const TiXmlElement *	ToElement () const
	Cast to a more defined type. Will return null not of the requested type.
const TiXmlComment *	ToComment () const
	Cast to a more defined type. Will return null not of the requested type.
const TiXmlUnknown *	ToUnknown () const
	Cast to a more defined type. Will return null not of the requested type.
const TiXmlText *	ToText () const
	Cast to a more defined type. Will return null not of the requested type.
const TiXmlDeclaration *	ToDeclaration () const
	Cast to a more defined type. Will return null not of the requested type.
TiXmlDocument *	ToDocument ()
	Cast to a more defined type. Will return null not of the requested type.
TiXmlElement *	ToElement ()
	Cast to a more defined type. Will return null not of the requested type.
TiXmlComment *	ToComment ()
	Cast to a more defined type. Will return null not of the requested type.
TiXmlUnknown *	ToUnknown ()
	Cast to a more defined type. Will return null not of the requested type.
TiXmlText *	ToText ()
	Cast to a more defined type. Will return null not of the requested type.
TiXmlDeclaration *	ToDeclaration ()
	Cast to a more defined type. Will return null not of the requested type.
virtual TiXmlNode *	Clone () const=0
	Create an exact duplicate of this node and return it.
Protected Member Functions
	TiXmlNode (NodeType _type)
void	CopyTo (TiXmlNode *target) const
virtual void	StreamIn (TIXML_ISTREAM *in, TIXML_STRING *tag)=0
TiXmlNode *	Identify (const char *start, TiXmlEncoding encoding)
const TIXML_STRING &	SValue () const
Protected Attributes
TiXmlNode *	parent
NodeType	type
TiXmlNode *	firstChild
TiXmlNode *	lastChild
TIXML_STRING	value
TiXmlNode *	prev
TiXmlNode *	next
Friends
class	TiXmlDocument
class	TiXmlElement
std::istream &	operator>> (std::istream &in, TiXmlNode &base)
	An input stream operator, for every class.
std::ostream &	operator<< (std::ostream &out, const TiXmlNode &base)
	An output stream operator, for every class.
std::string &	operator<< (std::string &out, const TiXmlNode &base)
	Appends the XML node or attribute to a std::string.

---

Detailed Description

The parent class for everything in the Document Object Model.

(Except for attributes). Nodes have siblings, a parent, and children. A node can be in a document, or stand on its own. The type of a TiXmlNode can be queried, and it can be cast to its more defined type.

---

Member Enumeration Documentation

enum gear::TiXmlNode::NodeType

The types of XML nodes supported by TinyXml. (All the unsupported types are picked up by UNKNOWN.)

---

Member Function Documentation

virtual TiXmlNode* gear::TiXmlNode::Clone (   )  const [pure virtual]

Create an exact duplicate of this node and return it. The memory must be deleted by the caller. Implemented in gear::TiXmlElement, gear::TiXmlComment, gear::TiXmlText, gear::TiXmlDeclaration, gear::TiXmlUnknown, and gear::TiXmlDocument.

const TiXmlDocument* gear::TiXmlNode::GetDocument (   )  const

Return a pointer to the Document this node lives in. Returns null if not in a document.

TiXmlNode* gear::TiXmlNode::InsertAfterChild (  TiXmlNode *  afterThis, const TiXmlNode &  addThis )

Add a new node related to this. Adds a child after the specified child. Returns a pointer to the new object or NULL if an error occured.

TiXmlNode* gear::TiXmlNode::InsertBeforeChild (  TiXmlNode *  beforeThis, const TiXmlNode &  addThis )

Add a new node related to this. Adds a child before the specified child. Returns a pointer to the new object or NULL if an error occured.

TiXmlNode* gear::TiXmlNode::InsertEndChild (  const TiXmlNode &  addThis  )

Add a new node related to this. Adds a child past the LastChild. Returns a pointer to the new object or NULL if an error occured.

const TiXmlNode* gear::TiXmlNode::IterateChildren (  const TiXmlNode *  previous  )  const

An alternate way to walk the children of a node. One way to iterate over nodes is: for( child = parent->FirstChild(); child; child = child->NextSibling() ) IterateChildren does the same thing with the syntax: child = 0; while( child = parent->IterateChildren( child ) ) IterateChildren takes the previous child as input and finds the next one. If the previous child is null, it returns the first. IterateChildren will return null when done.

TiXmlNode* gear::TiXmlNode::LinkEndChild (  TiXmlNode *  addThis  )

Add a new node related to this. Adds a child past the LastChild. NOTE: the node to be added is passed by pointer, and will be henceforth owned (and deleted) by tinyXml. This method is efficient and avoids an extra copy, but should be used with care as it uses a different memory model than the other insert functions. See also: InsertEndChild

const TiXmlElement* gear::TiXmlNode::NextSiblingElement (  const char *   )  const

Convenience function to get through elements. Calls NextSibling and ToElement. Will skip all non-Element nodes. Returns 0 if there is not another element.

const TiXmlElement* gear::TiXmlNode::NextSiblingElement (   )  const

Convenience function to get through elements. Calls NextSibling and ToElement. Will skip all non-Element nodes. Returns 0 if there is not another element.

TiXmlNode* gear::TiXmlNode::ReplaceChild (  TiXmlNode *  replaceThis, const TiXmlNode &  withThis )

Replace a child of this node. Returns a pointer to the new object or NULL if an error occured.

void gear::TiXmlNode::SetValue (  const char *  _value  )  [inline]

Changes the value of the node. Defined as: Document: filename of the xml file Element: name of the element Comment: the comment text Unknown: the tag contents Text: the text string

virtual int gear::TiXmlNode::Type (   )  const [inline, virtual]

Query the type (as an enumerated value, above) of this node. The possible types are: DOCUMENT, ELEMENT, COMMENT, UNKNOWN, TEXT, and DECLARATION.

const char* gear::TiXmlNode::Value (   )  const [inline]

The meaning of 'value' changes for the specific type of TiXmlNode. Document: filename of the xml file Element: name of the element Comment: the comment text Unknown: the tag contents Text: the text string The subclasses will wrap this function.

---

Friends And Related Function Documentation

std::ostream& operator<< (  std::ostream &  out, const TiXmlNode &  base )  [friend]

An output stream operator, for every class. Note that this outputs without any newlines or formatting, as opposed to Print(), which includes tabs and new lines. The operator<< and operator>> are not completely symmetric. Writing a node to a stream is very well defined. You'll get a nice stream of output, without any extra whitespace or newlines. But reading is not as well defined. (As it always is.) If you create a TiXmlElement (for example) and read that from an input stream, the text needs to define an element or junk will result. This is true of all input streams, but it's worth keeping in mind. A TiXmlDocument will read nodes until it reads a root element, and all the children of that root element.

std::istream& operator>> (  std::istream &  in, TiXmlNode &  base )  [friend]

An input stream operator, for every class. Tolerant of newlines and formatting, but doesn't expect them.

---

The documentation for this class was generated from the following file:

• tinyxml.h

---
