gear::TiXmlBase Class Reference

TiXmlBase is a base class for every class in TinyXml. More...

#include <tinyxml.h>

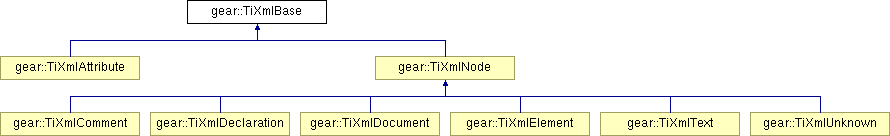

Inheritance diagram for gear::TiXmlBase:

List of all members.

Public Types
enum	{   TIXML_NO_ERROR = 0, TIXML_ERROR, TIXML_ERROR_OPENING_FILE, TIXML_ERROR_OUT_OF_MEMORY,   TIXML_ERROR_PARSING_ELEMENT, TIXML_ERROR_FAILED_TO_READ_ELEMENT_NAME, TIXML_ERROR_READING_ELEMENT_VALUE, TIXML_ERROR_READING_ATTRIBUTES,   TIXML_ERROR_PARSING_EMPTY, TIXML_ERROR_READING_END_TAG, TIXML_ERROR_PARSING_UNKNOWN, TIXML_ERROR_PARSING_COMMENT,   TIXML_ERROR_PARSING_DECLARATION, TIXML_ERROR_DOCUMENT_EMPTY, TIXML_ERROR_EMBEDDED_NULL, TIXML_ERROR_STRING_COUNT }
Public Member Functions
virtual void	Print (FILE *cfile, int depth) const=0
	All TinyXml classes can print themselves to a filestream.
int	Row () const
	Return the position, in the original source file, of this node or attribute.
int	Column () const
	See Row().
void	SetUserData (void *user)
void *	GetUserData ()
virtual const char *	Parse (const char *p, TiXmlParsingData *data, TiXmlEncoding encoding)=0
Static Public Member Functions
void	SetCondenseWhiteSpace (bool condense)
	The world does not agree on whether white space should be kept or not.
bool	IsWhiteSpaceCondensed ()
	Return the current white space setting.
Static Public Attributes
const int	utf8ByteTable [256]
Protected Member Functions
virtual void	StreamOut (TIXML_OSTREAM *) const=0
Static Protected Member Functions
const char *	SkipWhiteSpace (const char *, TiXmlEncoding encoding)
bool	IsWhiteSpace (char c)
bool	StreamWhiteSpace (TIXML_ISTREAM *in, TIXML_STRING *tag)
bool	StreamTo (TIXML_ISTREAM *in, int character, TIXML_STRING *tag)
const char *	ReadName (const char *p, TIXML_STRING *name, TiXmlEncoding encoding)
const char *	ReadText (const char *in, TIXML_STRING *text, bool ignoreWhiteSpace, const char *endTag, bool ignoreCase, TiXmlEncoding encoding)
const char *	GetEntity (const char *in, char *value, int *length, TiXmlEncoding encoding)
const char *	GetChar (const char *p, char *_value, int *length, TiXmlEncoding encoding)
void	PutString (const TIXML_STRING &str, TIXML_OSTREAM *out)
void	PutString (const TIXML_STRING &str, TIXML_STRING *out)
bool	StringEqual (const char *p, const char *endTag, bool ignoreCase, TiXmlEncoding encoding)
int	IsAlpha (unsigned char anyByte, TiXmlEncoding encoding)
int	IsAlphaNum (unsigned char anyByte, TiXmlEncoding encoding)
int	ToLower (int v, TiXmlEncoding encoding)
void	ConvertUTF32ToUTF8 (unsigned long input, char *output, int *length)
Protected Attributes
TiXmlCursor	location
void *	userData
	Field containing a generic user pointer.
Static Protected Attributes
const char *	errorString [TIXML_ERROR_STRING_COUNT]
Friends
class	TiXmlNode
class	TiXmlElement
class	TiXmlDocument

---

Detailed Description

TiXmlBase is a base class for every class in TinyXml.

It does little except to establish that TinyXml classes can be printed and provide some utility functions.

In XML, the document and elements can contain other elements and other types of nodes.

	A Document can contain:	Element	(container or leaf)
							Comment (leaf)
							Unknown (leaf)
							Declaration( leaf )

	An Element can contain:	Element (container or leaf)
							Text	(leaf)
							Attributes (not on tree)
							Comment (leaf)
							Unknown (leaf)

	A Decleration contains: Attributes (not on tree)


---

Member Function Documentation

virtual void gear::TiXmlBase::Print (  FILE *  cfile, int  depth )  const [pure virtual]

All TinyXml classes can print themselves to a filestream. This is a formatted print, and will insert tabs and newlines. (For an unformatted stream, use the << operator.) Implemented in gear::TiXmlAttribute, gear::TiXmlElement, gear::TiXmlComment, gear::TiXmlText, gear::TiXmlDeclaration, gear::TiXmlUnknown, and gear::TiXmlDocument.

int gear::TiXmlBase::Row (   )  const [inline]

Return the position, in the original source file, of this node or attribute. The row and column are 1-based. (That is the first row and first column is 1,1). If the returns values are 0 or less, then the parser does not have a row and column value. Generally, the row and column value will be set when the TiXmlDocument::Load(), TiXmlDocument::LoadFile(), or any TiXmlNode::Parse() is called. It will NOT be set when the DOM was created from operator>>. The values reflect the initial load. Once the DOM is modified programmatically (by adding or changing nodes and attributes) the new values will NOT update to reflect changes in the document. There is a minor performance cost to computing the row and column. Computation can be disabled if TiXmlDocument::SetTabSize() is called with 0 as the value. See also: TiXmlDocument::SetTabSize()

void gear::TiXmlBase::SetCondenseWhiteSpace (  bool  condense  )  [inline, static]

The world does not agree on whether white space should be kept or not. In order to make everyone happy, these global, static functions are provided to set whether or not TinyXml will condense all white space into a single space or not. The default is to condense. Note changing this values is not thread safe.

---

The documentation for this class was generated from the following file:

• tinyxml.h

---
