gear::TPCParametersImpl Class Reference

The geometry properties of a TPC like detector needed for reconstruction code. More...

#include <TPCParametersImpl.h>

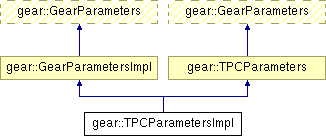

Inheritance diagram for gear::TPCParametersImpl:

List of all members.

Public Member Functions
virtual	~TPCParametersImpl ()
	Destructor.
virtual const PadRowLayout2D &	getPadLayout () const
	The pad layout in the endcaps.
virtual double	getMaxDriftLength () const
	The maximum drift length in the TPC in mm.
virtual double	getDriftVelocity () const
	The electron drift velocity in the TPC in mm/s.
virtual double	getReadoutFrequency () const
	The readout frequency in Hz.
virtual void	setPadLayout (PadRowLayout2D *padLayout)
virtual void	setMaxDriftLength (double maxDriftLength)
virtual void	setDriftVelocity (double driftVelocity)
virtual void	setReadoutFrequency (double readoutFrequency)
Protected Attributes
PadRowLayout2D *	_padLayout
double	_maxDriftLength
double	_driftVelocity
double	_readoutFrequency

---

Detailed Description

The geometry properties of a TPC like detector needed for reconstruction code.

This assumes a row based layout of the pads, either in a cartesian or in a polar angle coordinate system.
Most of this class is based on ideas by Dean Karlen.

Author:

F. Gaede, DESY

Version:

Id

TPCParametersImpl.h,v 1.1.1.1 2005/09/13 14:41:03 gaede Exp

---

The documentation for this class was generated from the following file:

• TPCParametersImpl.h

---
