gear::VXDParametersImpl Class Reference

Geometry properties of a vertex detector needed for reconstruction code. More...

#include <VXDParametersImpl.h>

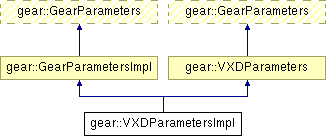

Inheritance diagram for gear::VXDParametersImpl:

List of all members.

Public Member Functions
	VXDParametersImpl (int vxdType, double shellInnerRadius, double shellOuterRadius, double shellHalfLength, double shellGap, double shellRadLength)
	C'tor.
virtual void	addLayer (int nLadders, double phi0, double ladderDistance, double ladderOffset, double ladderThickness, double ladderLength, double ladderWidth, double ladderRadLength, double sensitiveDistance, double sensitiveOffset, double sensitiveThickness, double sensitiveLength, double sensitiveWidth, double sensitiveRadLength)
	adding a Layer to the vertex one layer consiste of a number of ladders and sensitive areas (nLadders) that are each equidistant to IP.
virtual const VXDLayerLayout &	getVXDLayerLayout () const
	Returns the layer layout in the Vertex.
virtual int	getVXDType () const
	The type of Vertex detector: VXDParametersImpl.CCD, VXDParametersImpl.CMOS or VXDParametersImpl.HYBRID.
virtual double	getShellHalfLength () const
	The half length (z) of the support shell in mm.
virtual double	getShellGap () const
	The gap length (z) of the support shell in mm.
virtual double	getShellInnerRadius () const
	The inner radius of the support shell in mm.
virtual double	getShellOuterRadius () const
	The outer radius of the support shell in mm.
virtual double	getShellRadLength () const
	The radiation length in the support shell.
virtual bool	isPointInLadder (Point3D p) const
	returns whether a point is inside a ladder
virtual bool	isPointInSensitive (Point3D p) const
	returns wheter a point is inside a sensitive volume
virtual Vector3D	distanceToNearestLadder (Point3D p) const
	returns vector from given point p to nearest ladder
virtual Vector3D	distanceToNearestSensitive (Point3D p) const
	returns vector from given point p to nearest sensitive volume
virtual Point3D	intersectionLadder (Point3D p, Vector3D v) const
	returns the first point where a given strainght line (parameters point p and direction v) crosses a ladder
virtual Point3D	intersectionSensitive (Point3D p, Vector3D v) const
	returns the first point where a given strainght line (parameters point p and direction v) crosses a sensitive volume
Static Public Attributes
const int	CCD = 1
const int	CMOS = 2
const int	HYBRID = 3
Protected Attributes
VXDLayerLayoutImpl	_layer
int	_vxdType
double	_shellInnerRadius
double	_shellOuterRadius
double	_shellHalfLength
double	_shellGap
double	_shellRadLength

---

Detailed Description

Geometry properties of a vertex detector needed for reconstruction code.

The vertex is assumed to consist of a number of layers. Each layer consists of a number of rectangular ladders that are uniformly distributed in a circle around the IP.
The sensitive volumes can be placed relative to the (insensitive) ladders.

See also:

addLayer .

The shell is described by outer and inner radius and it's half length in z.

The gap is assumed to be symetrical around z==0 and goes through all layers and ladders.

Author:

R. Lippe, DESY

Version:

$Id:

---

Constructor & Destructor Documentation

gear::VXDParametersImpl::VXDParametersImpl (  int  vxdType, double  shellInnerRadius, double  shellOuterRadius, double  shellHalfLength, double  shellGap, double  shellRadLength )

C'tor. Parameters: vxdType  the type of the vertex detector: CCD, CMOS or HYBRID shellInnerRadius  the inner Radius of the vertex' shell (in mm) shellOuterRadius  the outer Radius of the vertex' shell (in mm) shellHalfLength  the half length in z (in mm) shellGap  the total width of the gap at z==0 - symetrical around z==0 shellRadLength  the material property information about the shell's material radiation length

---

Member Function Documentation

virtual void gear::VXDParametersImpl::addLayer (  int  nLadders, double  phi0, double  ladderDistance, double  ladderOffset, double  ladderThickness, double  ladderLength, double  ladderWidth, double  ladderRadLength, double  sensitiveDistance, double  sensitiveOffset, double  sensitiveThickness, double  sensitiveLength, double  sensitiveWidth, double  sensitiveRadLength )  [inline, virtual]

adding a Layer to the vertex one layer consiste of a number of ladders and sensitive areas (nLadders) that are each equidistant to IP. They are cubic with dimensions length (z), width (perpendicular to connection IP-spacepoint) and thickness (extension to connection IP-spacepoint). Parameters: nLadders  the number of ladders and sensitive areas inside the layer phi0  the starting angle for straight connection to the spacepoint Distance  the length (mm) of the straigth line between IP and spacepoint to ladder (ladderDistance) or sensitive Area (sensitiveDistance) Offset  the offset of ladder (ladderOffset) or sensitive area (sensitiveOffset) in clockwise direction in mm between spacepoint and middle of ladder/sensitive Thickness  the thickness in mm of the ladder (ladderThickness) or the sensitive area (sensitiveThickness) Length  the length (z-direction) in mm of the ladder (ladderLength) or the sensitive area (sensitiveLength) Width  the width of the ladder (ladderWidth) or the sensitive area (sensitiveWidth) in mm in clockwise direction RadLenght  the radiation lenght of the ladder (ladderRadLength) or the sensitive area (sensitiveRadLength) in mm

---
